FILO–60 door with a canvas for painting on an aluminum monoblock door frame

Minimal cost in collection

FILO–60, Fondo; PLANAR (without insertion).
Price per set: 60 mm thick canvas for painting, conditional size 60/70/80/90x200/210 cm,aluminum door frame in finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
Finishes
FONDO. Primed coating for painting.
  • L00 Fondo

ALUMINIUM. Aluminum surface finishing.
  • AL09 Chrome Matt

  • AL08 Black

  • AL07 Dark Brown

  • AL06 Piombo

  • AL05 Bronze

  • AL04 Soft Bronze

  • AL02 Champagne

  • AL03 Soft Gold

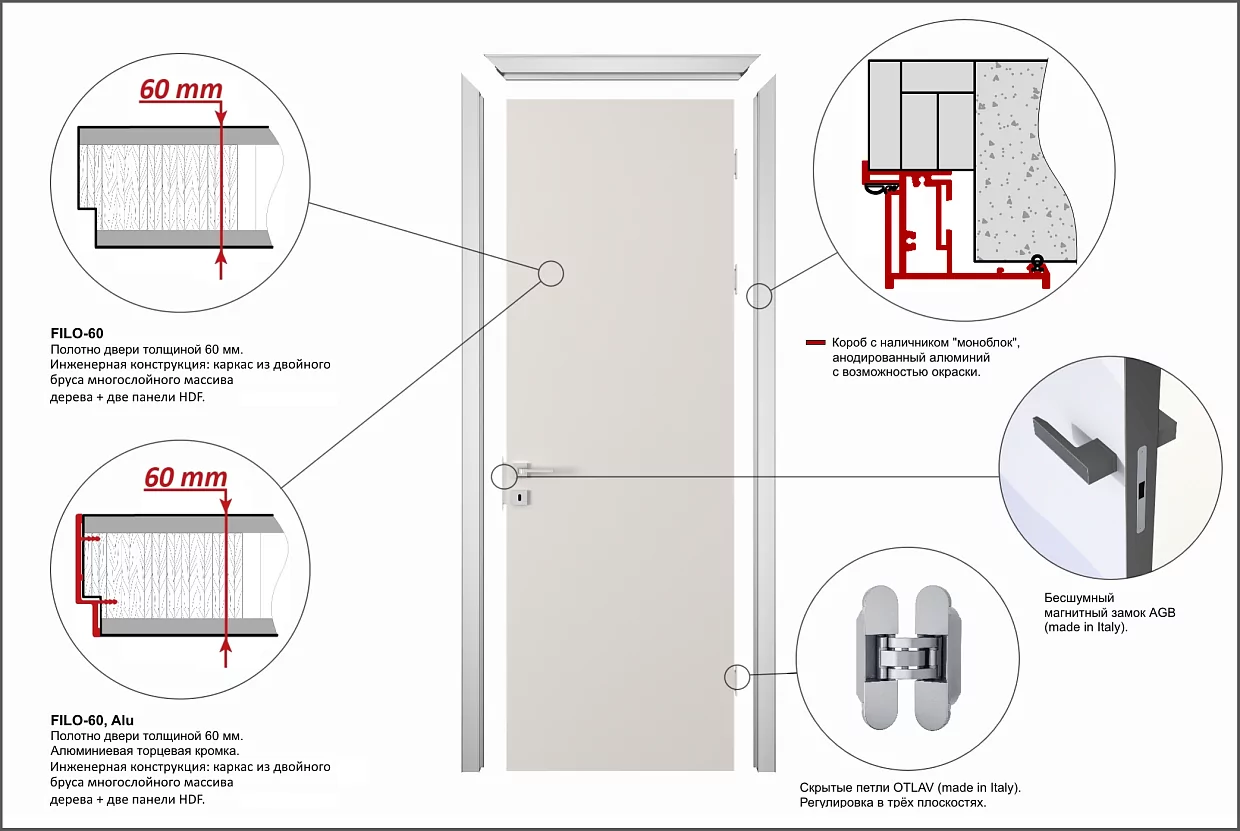

– Door leaf 60 mm, reinforced sound insulation. Patented engineering design, frame made of double timber of multilayer solid wood + two HDF panels. Primed for painting.
– Aluminum end edge – additional protection and aesthetics (optional).
– When the door height is more than 240 cm, a special panel is mounted inside the canvas .an alternative compensation rod for correcting possible bending.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). In the construction of the door frame "Out of the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum dimensions: width up to 100 cm, height up to 350 cm.

  • Door kit
  • Technical information

  • Aperture preparation
  • Video instruction

  1. Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
  2. Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
  3. The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level.  The floor must be flat, without weirs.
