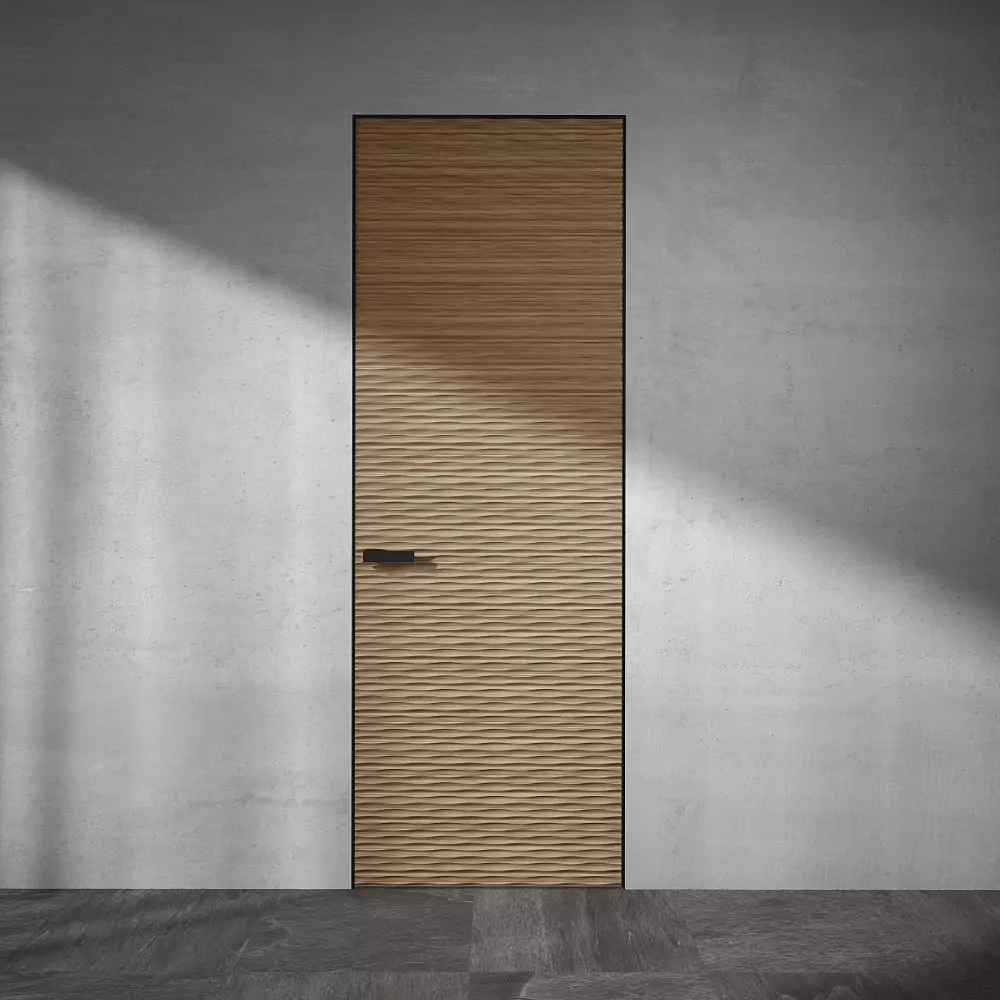

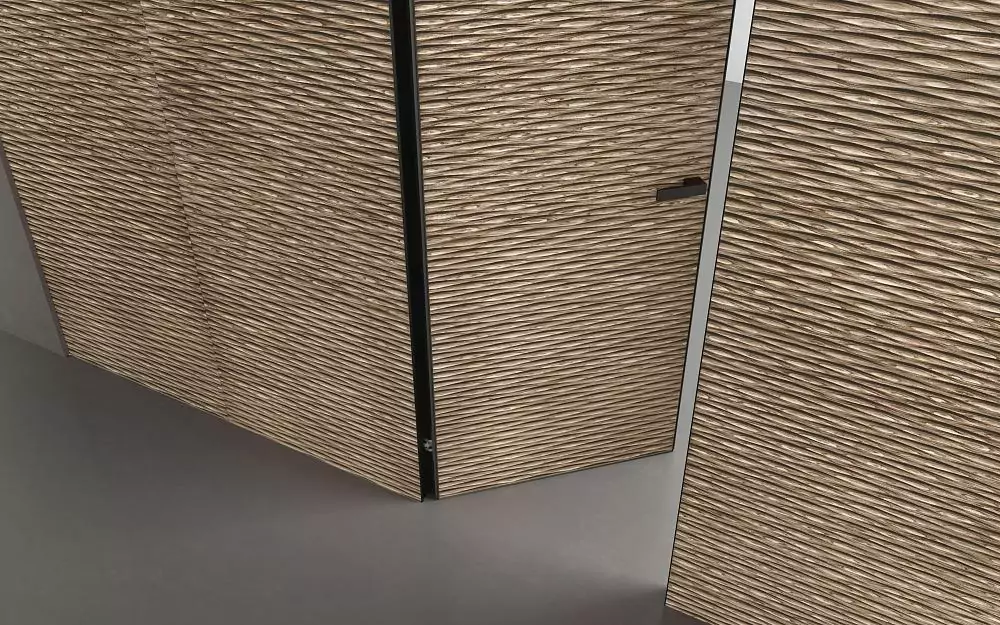

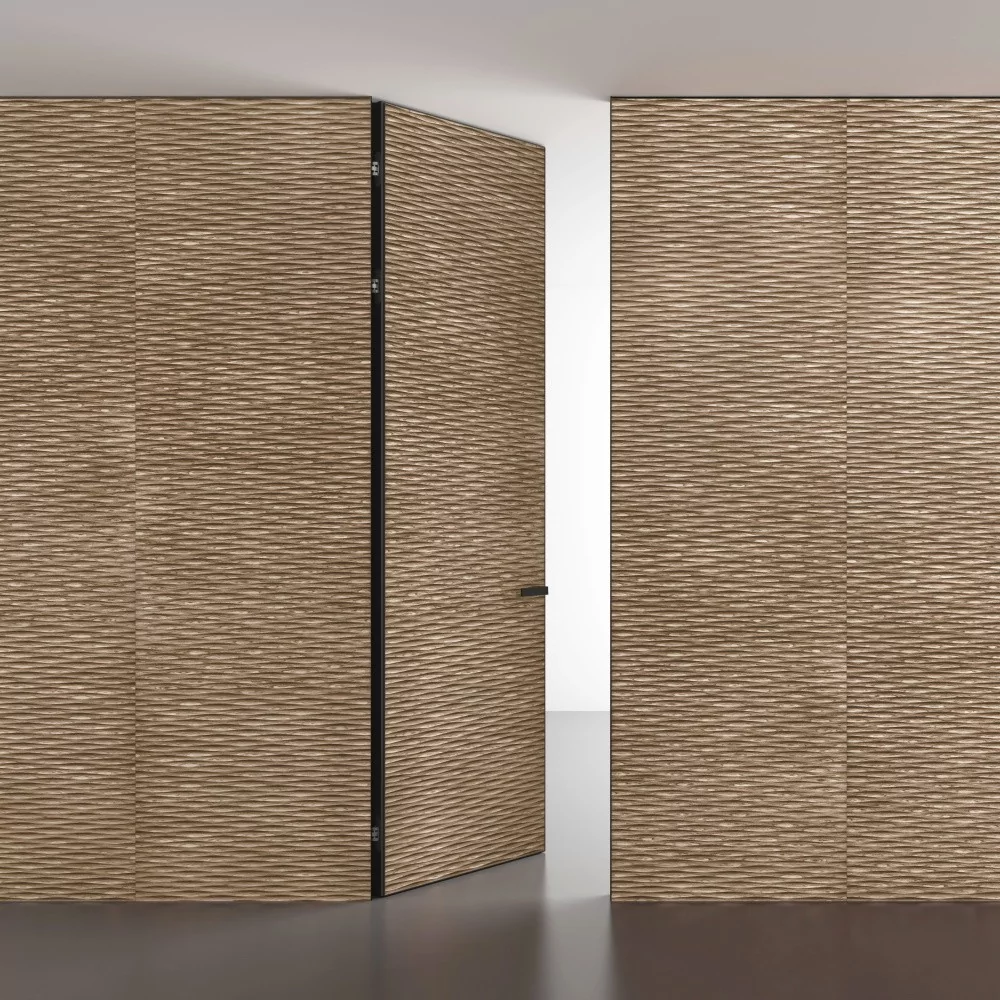

Wave – with horizontal wave–shaped milling on natural veneer
Minimal cost in collection
Price per set: 60 mm thick canvas, Wave model, relief, structural 3D drawing on veneer Noce Canaletto, nominal size 60/70/80/90x200/210 cm, aluminum door frame in finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.

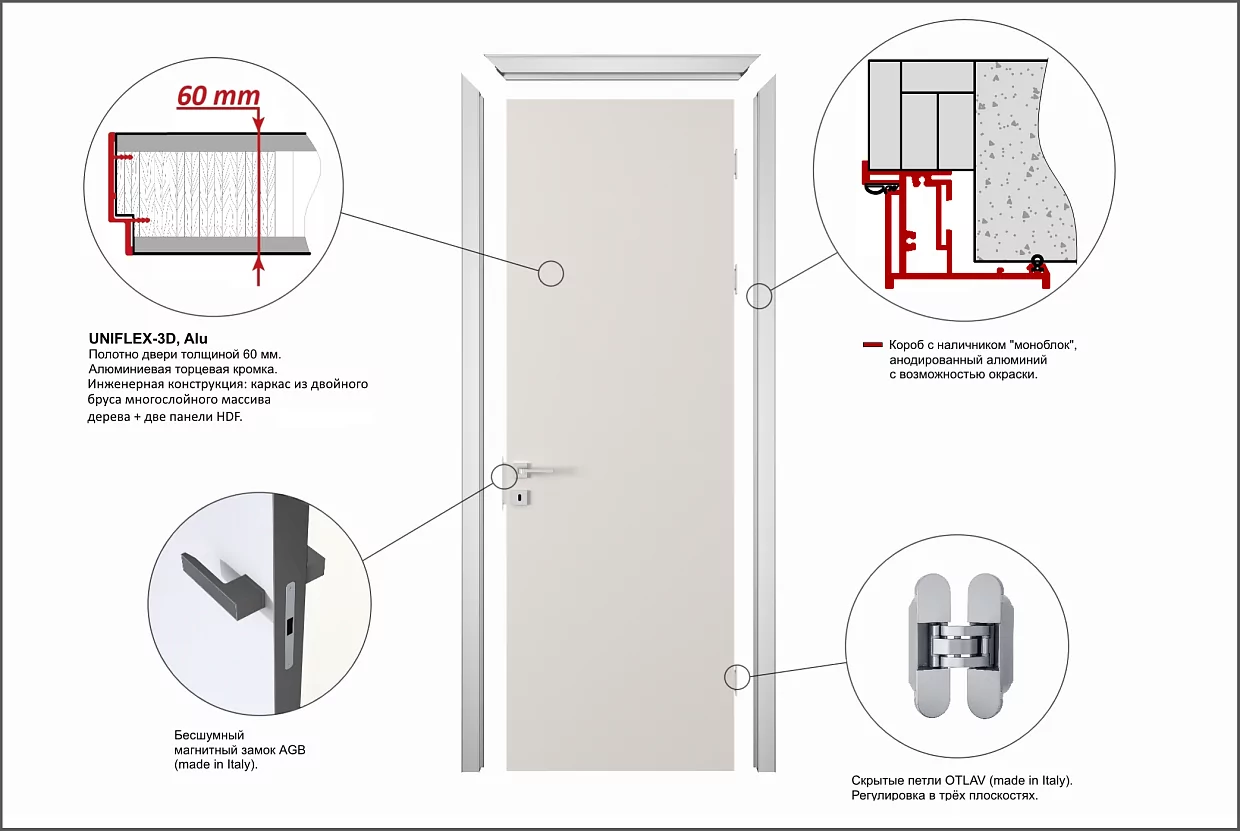

– Door leaf 60 mm, reinforced sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
– Finishing of the canvas: UNIFLEX–3D – relief, structural 3D drawing and volumetric milling on natural veneer, matt lacquer.
– Aluminum end edge – additional protection and aestheticica.
– When the door height is more than 240 cm, a special compensation rod is mounted inside the canvas to correct possible bending.
– Aluminum monoblock door frame(patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be both with one sideswarm – IN".
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum dimensions: width up to 100 cm, height up to 300 cm.
– Finishing of the canvas: UNIFLEX–3D – relief, structural 3D drawing and volumetric milling on natural veneer, matt lacquer.
– Aluminum end edge – additional protection and aestheticica.
– When the door height is more than 240 cm, a special compensation rod is mounted inside the canvas to correct possible bending.
– Aluminum monoblock door frame(patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be both with one sideswarm – IN".
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum dimensions: width up to 100 cm, height up to 300 cm.
- Door kit
Technical information
- Aperture preparation
Video instruction
- Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
- Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
- The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level. The floor must be flat, without weirs.
