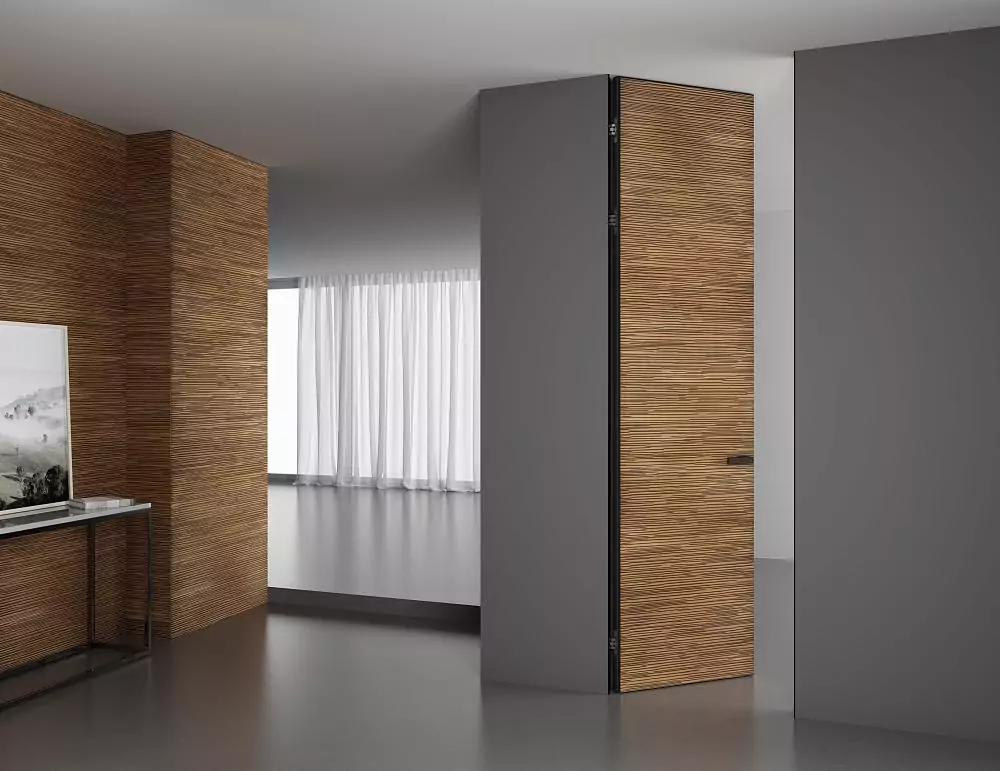

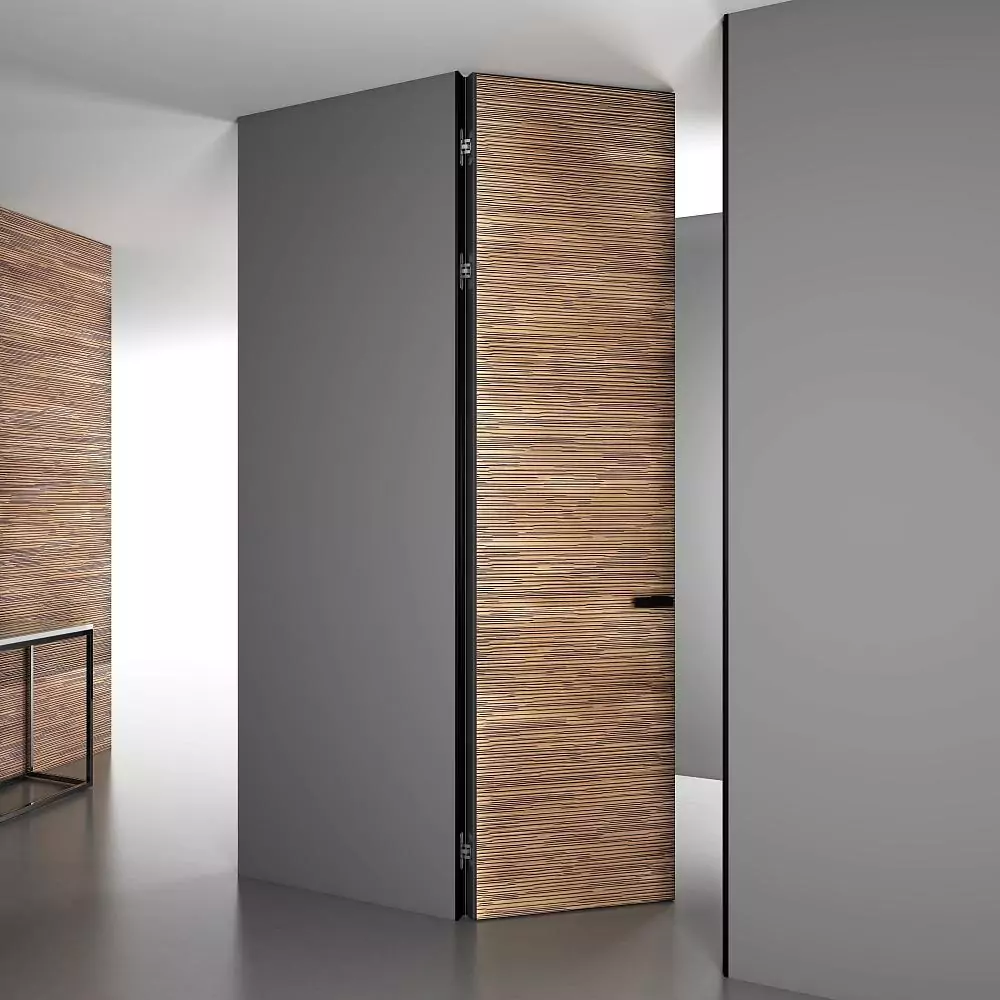

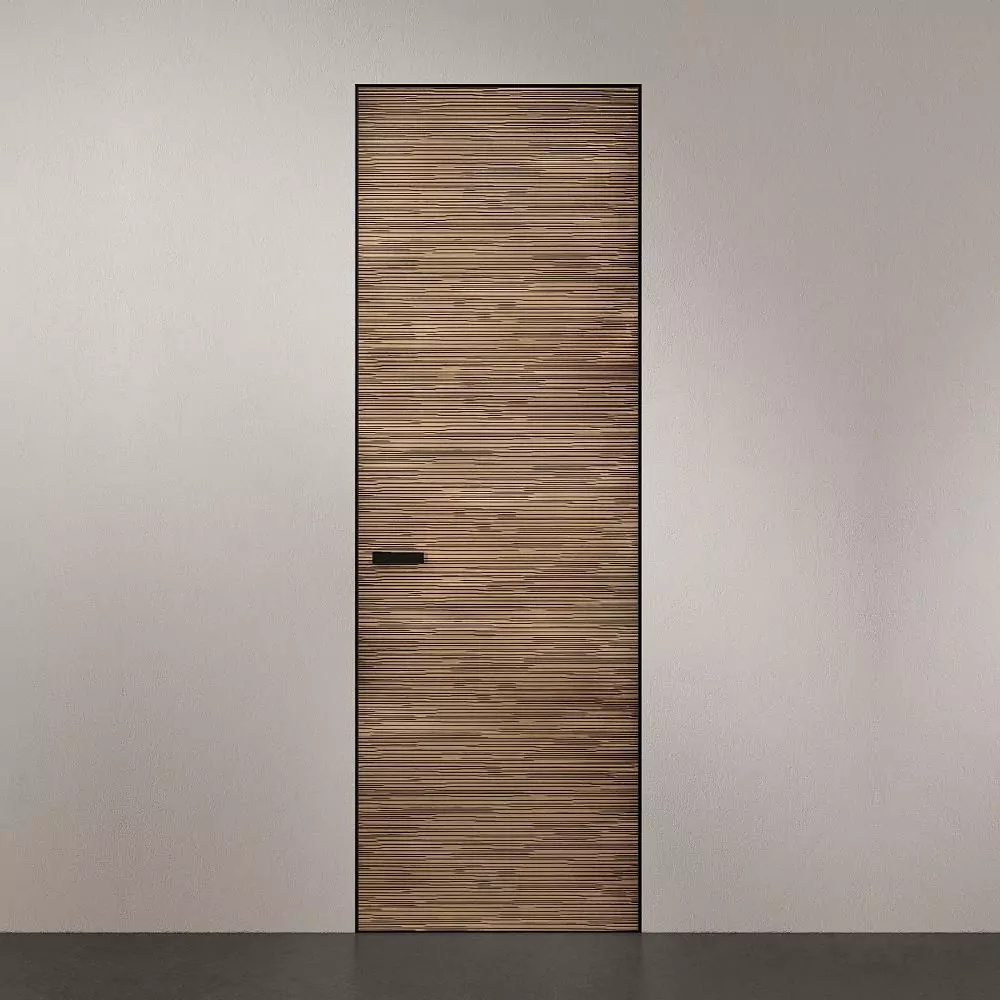

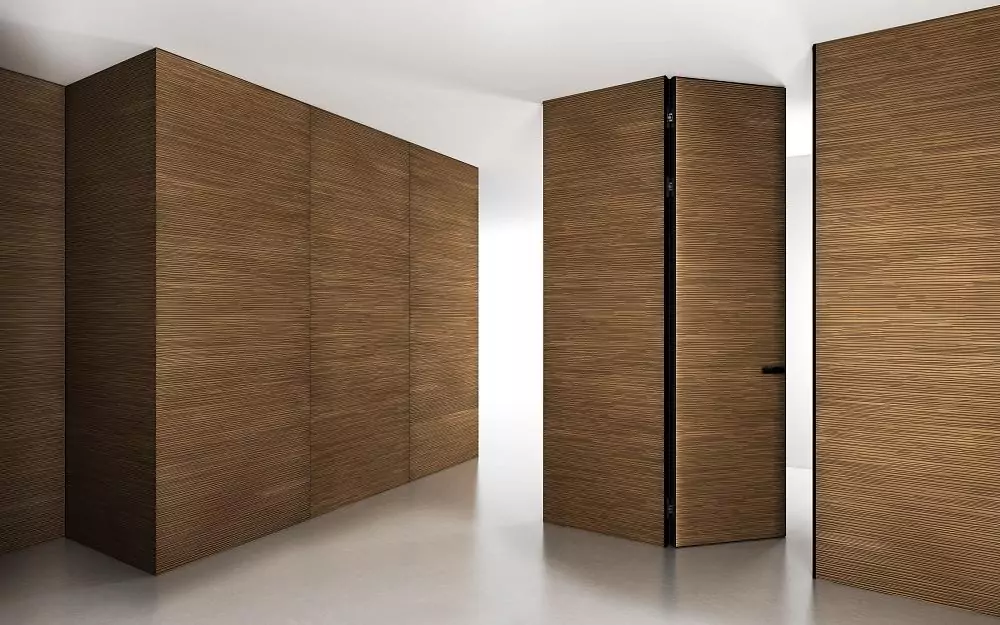

Espirit – with linear horizontal milling on natural veneer

Minimal cost in collection

UNIFLEX–3D, Alu, Espirit; INVISIBLE.
Price per set: 60 mm thick canvas, Espirit model, relief, structural 3D drawing on veneer Noce Canaletto, nominal size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and a "hidden" door frame in the finish – Chrome Matt anodizing, sealer, hidden hinges, magnetic lock.

Design and finishes

Types of designs and finishes of UNIFLEX–3D. Volumetric milling, natural veneer. Relief, structural 3D drawing.

Espirit, UE16 Noce Canaletto

ALUMINIUM. Aluminum surface finishing.

AL09 Chrome Matt
AL08 Black
AL07 Dark Brown
AL06 Piombo
AL05 Bronze
AL04 Soft Bronze
AL02 Champagne
AL03 Soft Gold

Door frame Options

INVISIBLE

PLANAR
(without insertion)

PLANAR
(with insert)

download the catalog

download technical information in dwg

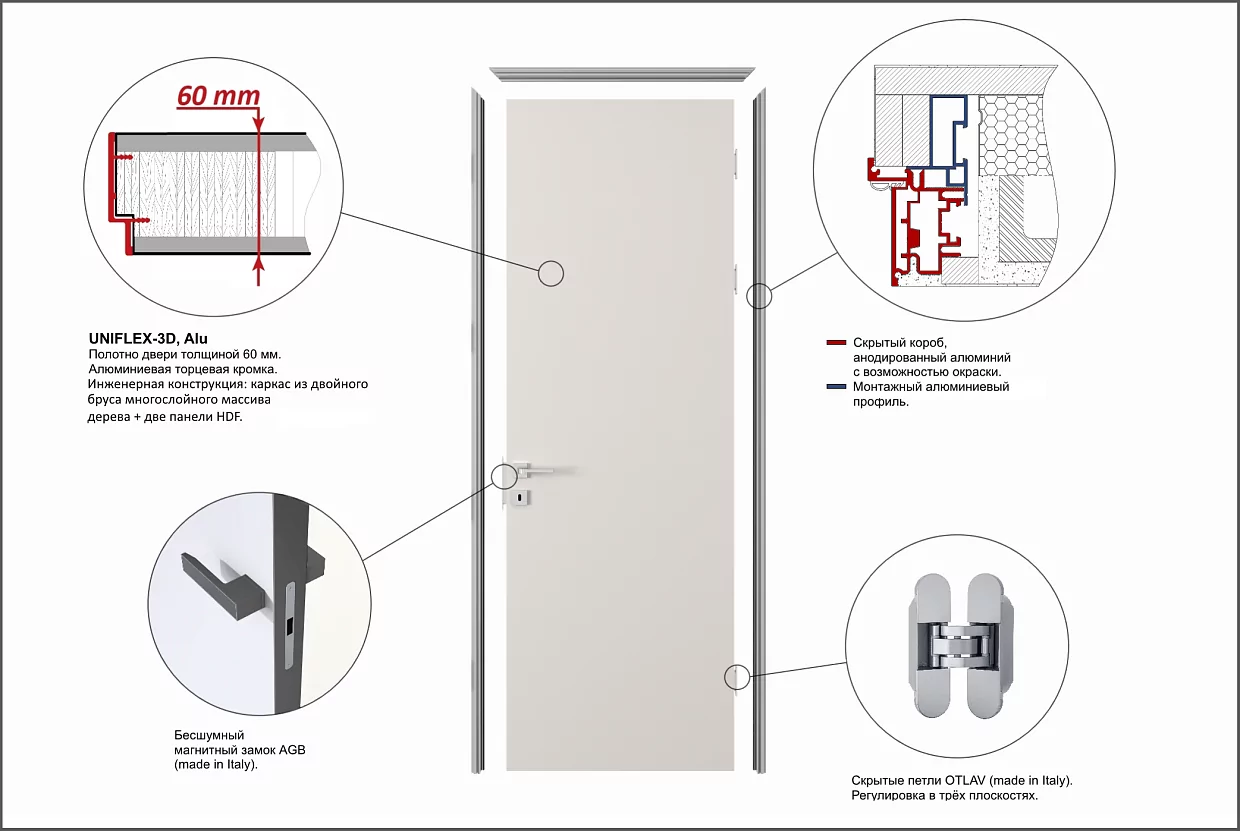

– Door leaf 60 mm, reinforced sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
– Finishing of the canvas: UNIFLEX–3D – relief, structural 3D drawing and volumetric milling on natural veneer, matt lacquer.
– Aluminum end edge – additional protection and aesthetic

Types of doorways
Door kit
Technical information
Aperture preparation

Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level. The floor must be flat, without weirs.
