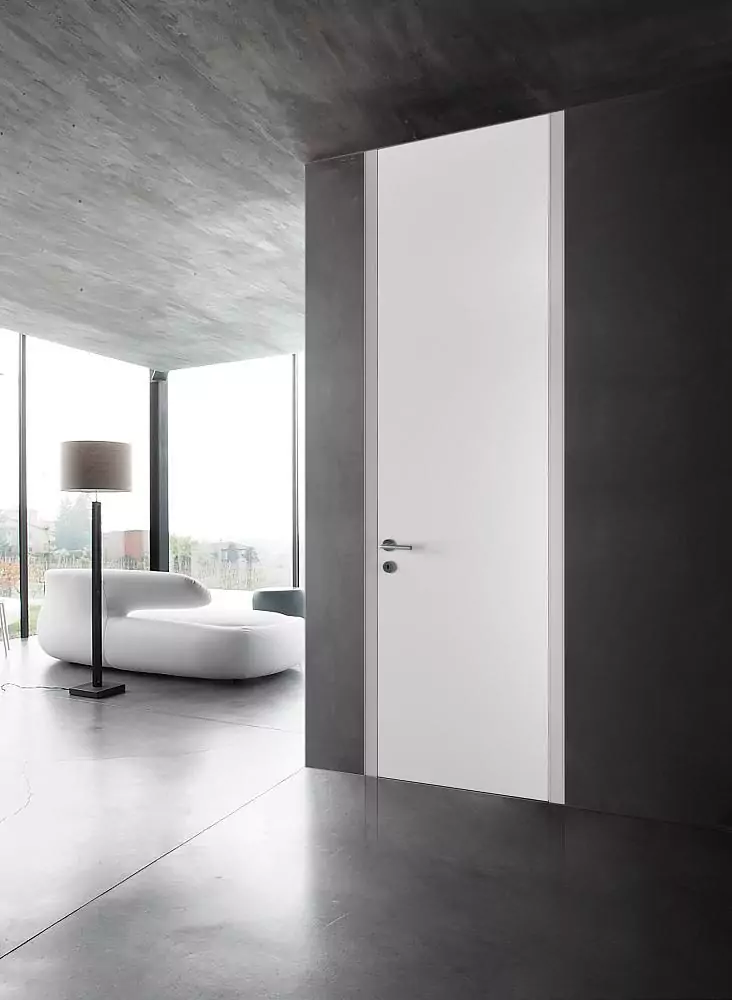

The door is on aluminum monoblock door frame, matte enamel.
Minimal cost in collection
Price per set: canvas finished with Bianco matte enamel, conditional size 60/70/80/90x200/210 cm, aluminum door frame finished with Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.

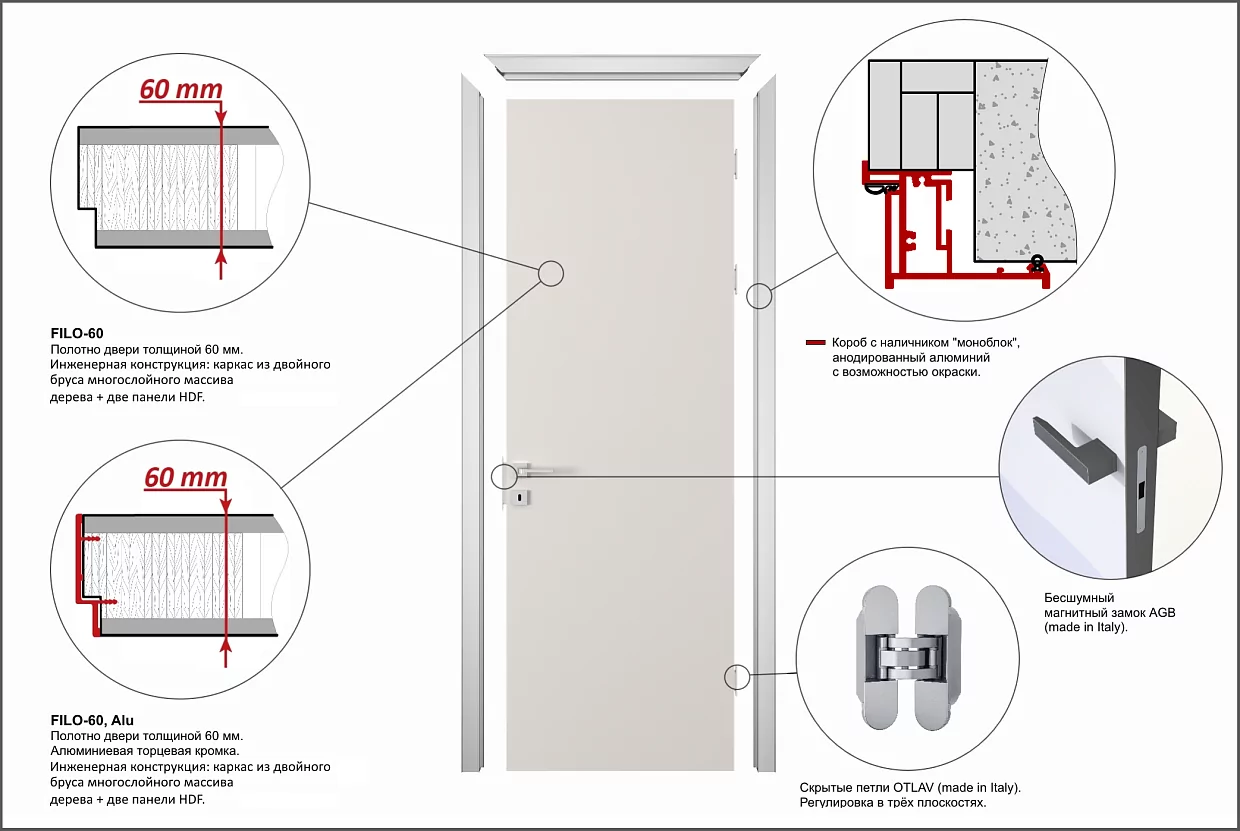

– Door leaf 60 mm, reinforced sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
– Options for finishing the canvas: LACCATO – matte enamel.
– Aluminum end edge – additional protection and aesthetics (optional).
– When the height of the door is more than 240 cm inside the canvas, thethere is a special compensation rod to adjust the possible bending.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). In constthe arm of the door frame is provided with an additional (optional).
– The base finish of the door frame is anodized aluminum, Chrome Matt color.
– The door frame, the aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
– Hidden reinforced OTLAV loops (made in Italy). Adjustable in three planes.
– Noise–free magnetic lock AGB (made in Italy).
– DEVENTER sealer (made in Germany), super elastic, wear–resistant.
– A special hidden sealer (made in Germany) between the casing and the wall, levels the irregularities of the wall, providing an ideal fit.
– Two coplanar opening systems "From the opening – OUT" and "Into the opening – IN" (monoblock door frame with platband, coplanar weby).
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum dimensions: width up to 100 cm, height up to 350 cm.
– Options for finishing the canvas: LACCATO – matte enamel.
– Aluminum end edge – additional protection and aesthetics (optional).
– When the height of the door is more than 240 cm inside the canvas, thethere is a special compensation rod to adjust the possible bending.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). In constthe arm of the door frame is provided with an additional (optional).
– The base finish of the door frame is anodized aluminum, Chrome Matt color.
– The door frame, the aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
– Hidden reinforced OTLAV loops (made in Italy). Adjustable in three planes.
– Noise–free magnetic lock AGB (made in Italy).
– DEVENTER sealer (made in Germany), super elastic, wear–resistant.
– A special hidden sealer (made in Germany) between the casing and the wall, levels the irregularities of the wall, providing an ideal fit.
– Two coplanar opening systems "From the opening – OUT" and "Into the opening – IN" (monoblock door frame with platband, coplanar weby).
– Opening "From the opening – OUT" (180°) or "Into the opening – IN" Inverso model (95°).
– Possibility of installation under the ceiling without an upper jumper.
– Maximum dimensions: width up to 100 cm, height up to 350 cm.
- Door kit
Technical information
- Aperture preparation
Video instruction
- Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
- Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
- The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level. The floor must be flat, without weirs.
NEED HELP WITH YOUR ORDER?
Minimal cost in collection
FILO–60, LACCATO; PLANAR (without insert).
Price per set: canvas finished with Bianco matte enamel, conditional size 60/70/80/90x200/210 cm, aluminum door frame finished with Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
