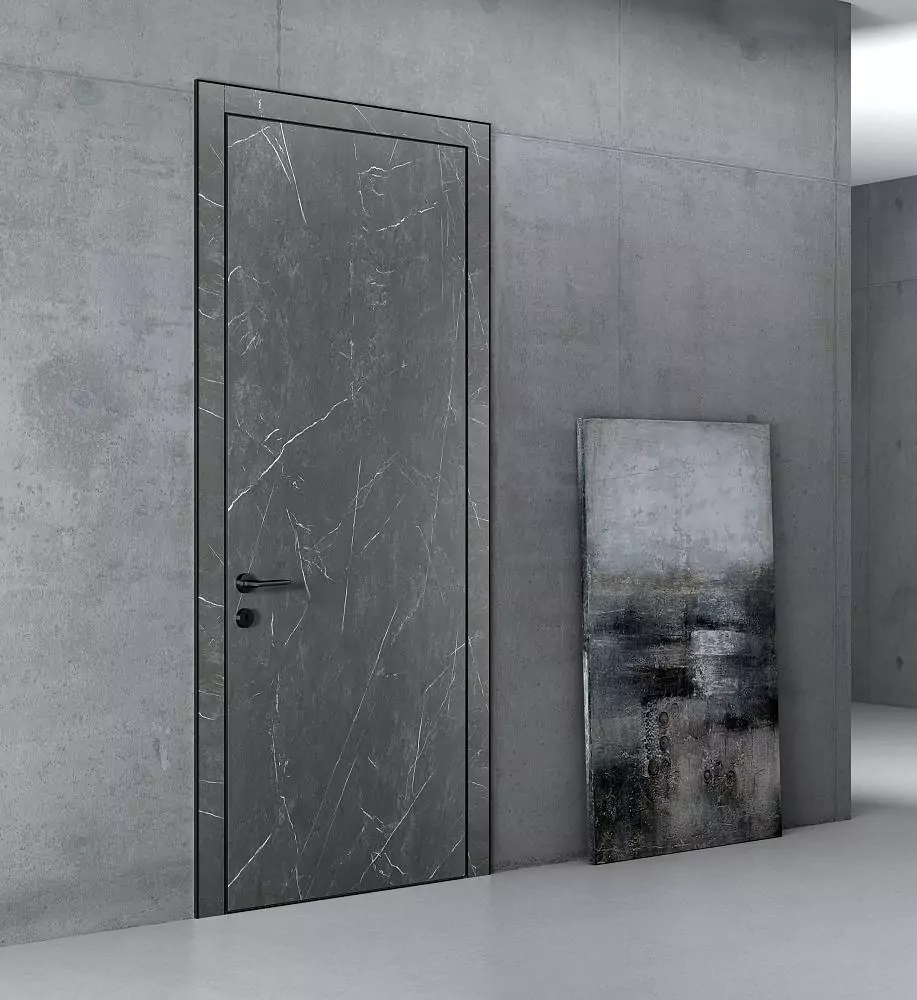

The door is on an aluminum door frame, composite material.
Minimal cost in collection
Price per set: 60 mm thick canvas in the HPL Marmo Bianco finish, conditional size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and aluminum door frame in the finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.

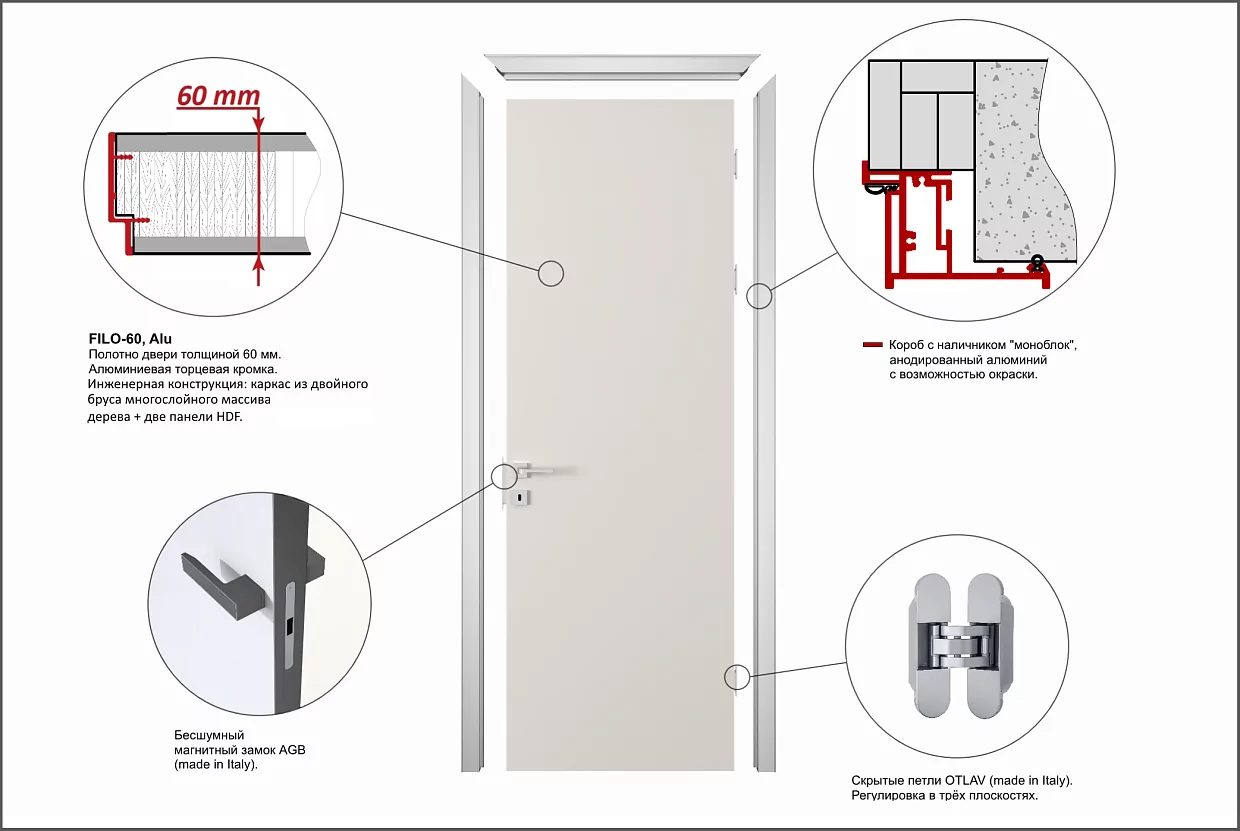

– Door leaf 60 mm, reinforced sound insulation. Engineering construction, frame made of double timber of multilayer solid wood + two HDF panels.
– Finishing of the canvas: HPL – decorative composite material.
– Aluminum end edge – additional protection and aesthetics (optional).
– When the door height is more than 240 cm inside the canvasesand a special compensation rod is mounted to correct a possible bend.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). The design of the door frame has a dobora (option).
– The base finish of the door frame is anodized aluminum, Chrome Matt color.
– The door frame, the aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
– Hidden reinforced OTLAV loops (made in Italy). Adjustable in three planes.
– Silent magnetic lock
– Finishing of the canvas: HPL – decorative composite material.
– Aluminum end edge – additional protection and aesthetics (optional).
– When the door height is more than 240 cm inside the canvasesand a special compensation rod is mounted to correct a possible bend.
– Aluminum monoblock door frame (patent UNION), is not subject to deformation when humidity and temperature change. Maximum rigidity of the structure.
– The platband can be either on one side (a monoblock with a door frame) or on both sides (optional). The design of the door frame has a dobora (option).
– The base finish of the door frame is anodized aluminum, Chrome Matt color.
– The door frame, the aluminum edge and the handle can be in any of the finishes offered by the manufacturer.
– Hidden reinforced OTLAV loops (made in Italy). Adjustable in three planes.
– Silent magnetic lock
- Door kit
Technical information
- Aperture preparation
Video instruction
- Measure the necessary dimensions of a doorway L2/H2 (width, height). For standard door sizes a discount is provided.
- Plaster the walls vertically (without deflections). Prepare the walls for the final finishing.
- The door is installed on the same level as a finishing floor. Make sure your floor is finished or you have a mark of a final floor level. The floor must be flat, without weirs.
NEED HELP WITH YOUR ORDER?
Minimal cost in collection
FILO–60, Alu, HPL; PLANAR (without insert).
Price per set: 60 mm thick canvas in the HPL Marmo Bianco finish, conditional size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and aluminum door frame in the finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
Price per set: 60 mm thick canvas in the HPL Marmo Bianco finish, conditional size 60/70/80/90x200/210 cm, aluminum end edge on the canvas and aluminum door frame in the finish – Chrome Matt anodizing (platbands on the opening side), sealer, hidden hinges, magnetic lock.
